RadioHardware Class Reference

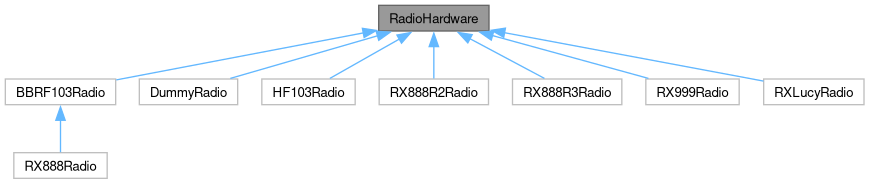

Inheritance diagram for RadioHardware:

Collaboration diagram for RadioHardware:

Public Member Functions
	RadioHardware (fx3class *fx3)
sddc_rf_mode_t	GetRFMode ()
virtual sddc_rf_mode_t	GetBestRFMode (uint64_t freq)=0
virtual sddc_err_t	SetRFMode (sddc_rf_mode_t mode)=0
uint32_t	GetADCSampleRate ()
sddc_err_t	SetADCSampleRate (uint32_t samplefreq)
virtual const array< float, 2 >	GetADCSampleRateLimits ()=0
bool	GetBiasT_HF ()
sddc_err_t	SetBiasT_HF (bool new_state)
bool	GetBiasT_VHF ()
sddc_err_t	SetBiasT_VHF (bool new_state)
uint16_t	GetRF_HF ()
uint16_t	GetRF_VHF ()
uint16_t	GetIF_HF ()
uint16_t	GetIF_VHF ()
uint32_t	GetCenterFrequency_HF ()
uint32_t	GetCenterFrequency_VHF ()
bool	GetDither ()
sddc_err_t	SetDither (bool new_state)
bool	GetPGA ()
sddc_err_t	SetPGA (bool new_state)
bool	GetRand ()
sddc_err_t	SetRand (bool new_state)
sddc_err_t	StartStream ()
sddc_err_t	StopStream ()
sddc_err_t	SetGPIO (uint32_t mask)
sddc_err_t	UnsetGPIO (uint32_t mask)
sddc_err_t	SetLED (sddc_leds_t led, bool on)
	Change the state of an LED.
bool	ReadDebugTrace (uint8_t *pdata, uint8_t len)
virtual const char *	GetName ()=0
virtual float	getGain ()=0
virtual sddc_err_t	SetCenterFrequency_HF (uint32_t freq)=0
virtual sddc_err_t	SetCenterFrequency_VHF (uint32_t freq)=0
virtual uint32_t	GetTunerFrequency_HF ()=0
virtual uint32_t	GetTunerFrequency_VHF ()=0
virtual vector< float >	GetRFSteps_HF ()=0
virtual vector< float >	GetRFSteps_VHF ()=0
virtual sddc_err_t	SetRFAttenuation_HF (size_t attIndex)=0
virtual sddc_err_t	SetRFAttenuation_VHF (uint16_t attIndex)=0
virtual vector< float >	GetIFSteps_HF ()=0
virtual vector< float >	GetIFSteps_VHF ()=0
virtual sddc_err_t	SetIFGain_HF (size_t attIndex)=0
virtual sddc_err_t	SetIFGain_VHF (size_t attIndex)=0

Protected Attributes
fx3class *	Fx3
uint32_t	gpios = 0
uint32_t	sampleRate = 0
sddc_rf_mode_t	currentRFMode = NOMODE
bool	stateDither = false
bool	statePGA = false
bool	stateRand = false
bool	stateBiasT_HF = false
bool	stateBiasT_VHF = false
uint16_t	attenuationHFStep = 0
uint16_t	attenuationVHFStep = 0
uint16_t	gainHFStep = 0
uint16_t	gainVHFStep = 0
uint32_t	freqLO_HF = 0
uint32_t	freqLO_VHF = 0

Member Function Documentation

SetLED()

sddc_err_t RadioHardware::SetLED	(	sddc_leds_t	led,
		bool	on )

Change the state of an LED.

Parameters

[in]	led	The LED to change
[in]	on	The new LED state

---

The documentation for this class was generated from the following files:

• Core/radio/RadioHardware.h
• Core/radio/RadioHardware.cpp
